CNMG160612 CNC Cutting Carbide Turning Inserts

Zhuzhou Lingchuang Cemented Carbide Tools Co.,Ltd (here in after reffered as LCT) is a Chinese company which established in 2008 located in Zhuzhou City,Hunan province,China where is famouse in the world for its tungsten carbide industry. lCT is a professional manufacturer of Cutting Tools and Carbide material. it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.

50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so on.

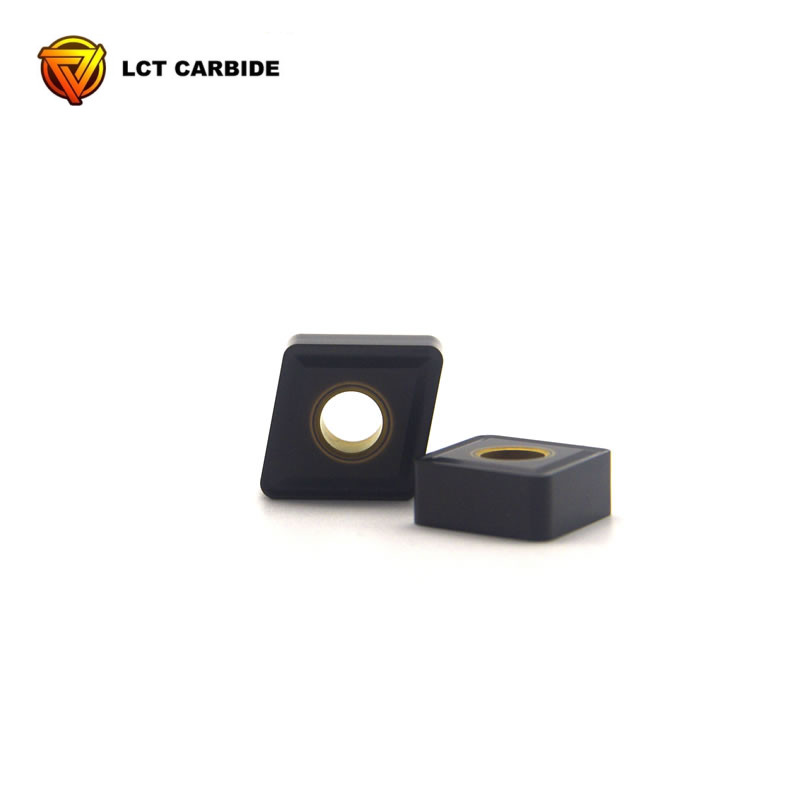

CNMG160612 CNC Cutting Carbide TURNING INSERTS

ISO Type: CNMG160612-**,CNMG543

Dimension (inch): L=0.634, I.C.=0.625, S=0.250, d=0.250, r=0.047

Grade: DH1025

Chip Breaker: DPMX

Chip Breaker Application: Recommended chipbreaker for semi-finishing P-kind materials
Double-side chipbreaker with M-class tolerance has higher toughness on cutting edge than DPM chipbreaker. It’s suitable for semi-finishing under unfavorable conditions. Also good for machining cast iron with low cutting force.

Grade Description: MT-TiCN + Al2O3 + TiN coating on carbide

Grade Application:Substrate with special matrix, in combination with Ti(CN), thick layer AI2O3, and TiN coating. With the resistance to rake face diffusion and plastic deformation, it is good for finishing and semi-finishing (turning as well as boring) of stainless steel.

Workpiece Material (ISO): Cast Iron (K10-K20)

Application: This insert is an excellent choice for general-purpose medium machining of steels.

Note: Product sold in packs of 10 units.
