Indexable Drills

  • WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating
  • WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating
  • WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating
WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating

WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating

  • MOQ:10PCS
  • long life span
  • high strength
  • good roughness
  • Product description: Quality Carbide Drill Inserts manufacturers & exporter - buy WCMX06T308 Carbide Drill Inserts CNC Indexable Milling Cutter PVD Coating from China manufacturer.
  •   Send Email

Zhuzhou Xinshuo New Advanced Materials Co.LTD,branded as SIEESO carbide factory, is a professional manufacturer of Cutting Tools and Carbide material. Since Sieeso started ,it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.


50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so on.

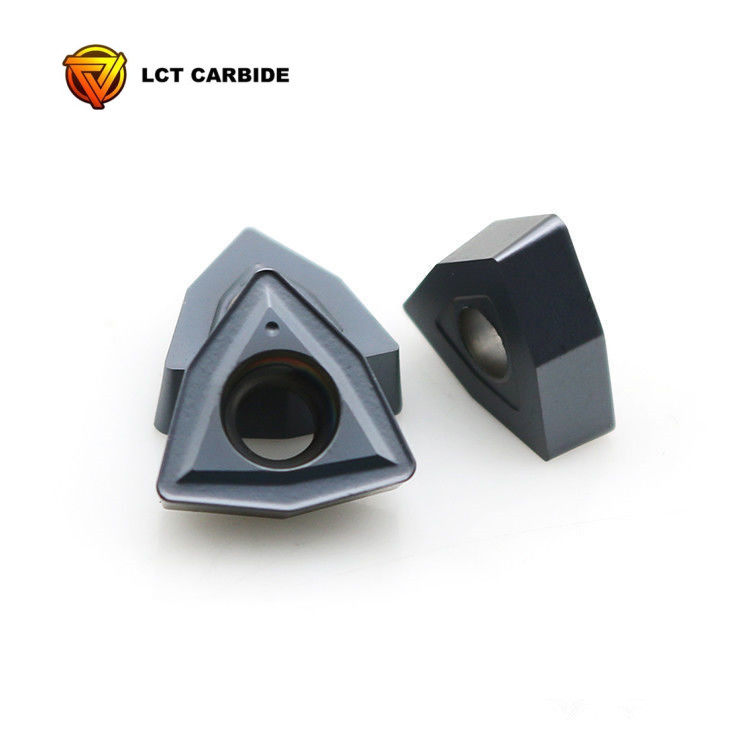

            WCMX06T308 U Drill Inserts/Carbide Drill Inserts/CNC Indexable Milling Cutter/PVD Coating


1 Basic Information


Basic   information

Material:

Tungsten   Carbide

Grade:

Steel/Stainless/Cast   Iron

Chip   breaker:

Process   For Semi Finish , Finish And Rough

Color:

Black/Yellow

Size:

WCMX   All Series Have Mould And In Stock

Coating:

CVD/PVD

Place   of Origin:

Zhuzhou, China

Certification:

ISO9001:2015/   CQC



Description:

l   For   machining of steel, stainless steel, cast iron and heat-resistant alloys.

l   Drilling   bodies with PVD coated surfaces.

l   Big   chip pocket for better chip removal.

l   Optional   adapter for inner cooling in conventional    machines.

l   Diameter   range 13.0–50.0 mm

Application:

WCMX   types U drill tools

U-drilling   insert/ indexable drill inserts series

It's   suitable for the processing of materials of carbon steel, alloy steel and   austenitic stainless steel with high cutting efficiency under stable working   conditions.

Workpiece:

Finishing   and semi-finishing of stainless steel, steel , hard steel , cast iron , ect.


2 Specification






TYPE

Dimensions

L

Θ I.C

S

Θ d



     r



WCMX030208R-53/DMM

3.3

6.35

2.38

3.1

0.8

WCMX040208R-53/DMM

4.3

6.35

2.38

3.1

0.8

WCMX050308R-53/DMM

5.5

9.525

3.18

3.36

0.8

WCMX06T308R-53/DMM

6.5

9.525

3.97

3.7

0.8

WCMX080412-53/DMM

8.7

12.7

4.76

4.3

1.2



3 Grade Information


Grade   No

Application





CVD COATING



DH7442



CVD coated   P20–P40/K20–K40 carbide substrate for operation with higher cutting speed and   feed rate in steel and cast iron.



DH3050

CVD coated K20–K35 carbide substrate.   Optimized for medium to roughing operation of cast iron and Steel. Good wear   resistance and toughness at higher cutting speed.





PVD COATING

DW5025



PVD coated   M10–M25/P10–P30 carbide substrate for finishing to medium application of   stainless steel and steel (milling). Good wear resistance in a wide   application field.

DW2025



PVD multilayer coated   P10–P30/M20–M40/S15–S25 carbide substrate for finishing to medium application   of stainless steel, super alloy and steel (milling). Good wear resistance and   thermal stability in a wide application field.

DW4050



PVD coated   M25–M40/P25–P35 carbide substrate for steel and stainless steel. Especially   for inner insert at drilling operation.



Uncoated carbide

DD201

Uncoated N10–N30/K10–K30 carbide substrate   for medium application in aluminum and other material.


4 Chip Breaker


Chip breaker

Application

DPMX

For machining of steel,   stainless steel and cast iron

DMM

For machining of steel, stainless steel   and heat-resistant alloys.

PG

For machining of steel and   cast iron

D

For machining of steel, stainless steel   and cast iron.

53

For machining of steel,   stainless steel, cast iron and non-ferrous metals


5 Payment & Shipping Terms




Minimum Order Quantity:





10PCS



Price:





Negotiation



Packaging   Details:

Inner plastic box ; outside   wooden box or as customer's special requirements.



Payment   Terms:



T/T,WesternUnion,Paypal,   MoneyGram,Alipay,L/C, D/A, D/P

Delivery Time:

In stock 3 days,out of stock 15 working   days

Supply   Ability:

500000pcs per month



6.Advantages

--Cutting edge inclination designation is good to control chip flow direction and obtains excellent surface quality

--sharp cutting edge, small cutting force

--good machining surface quality

--special chipbreaker design to keep cutting edge sharp and safe

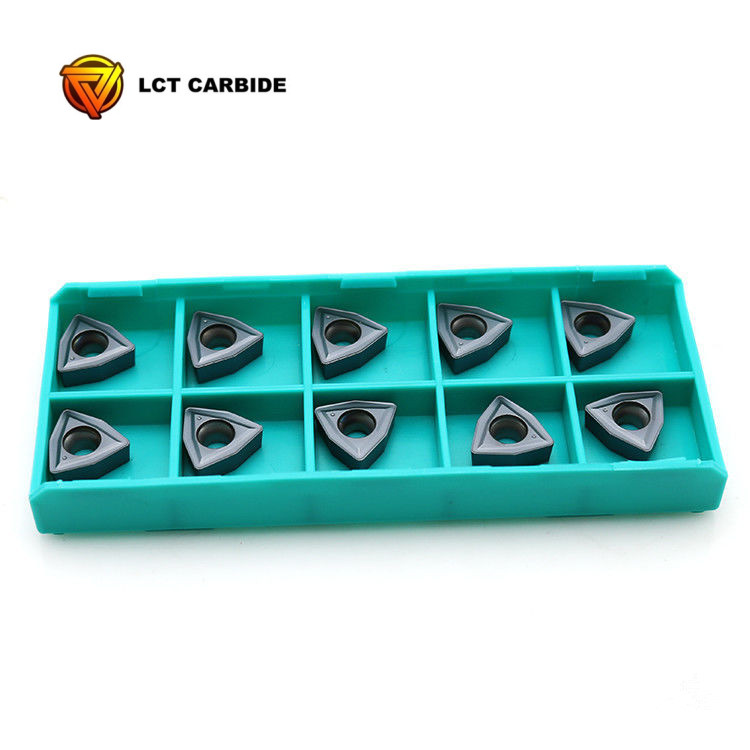

7.Products Pictures





Factory Pictures:


SIEESO FACTORY
SIEESO FACTORYSIEESO FACTORY
