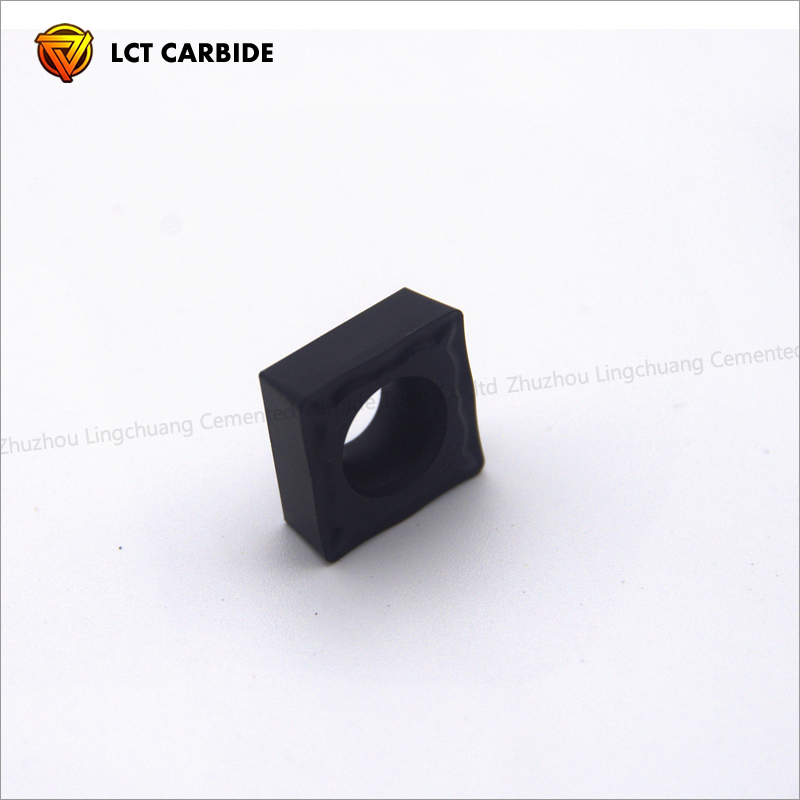

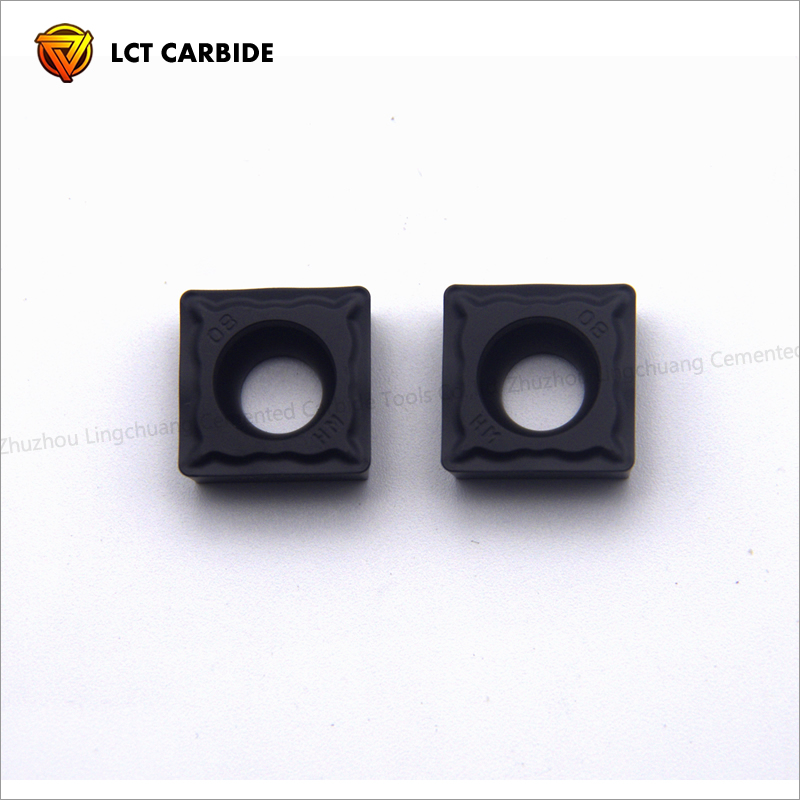

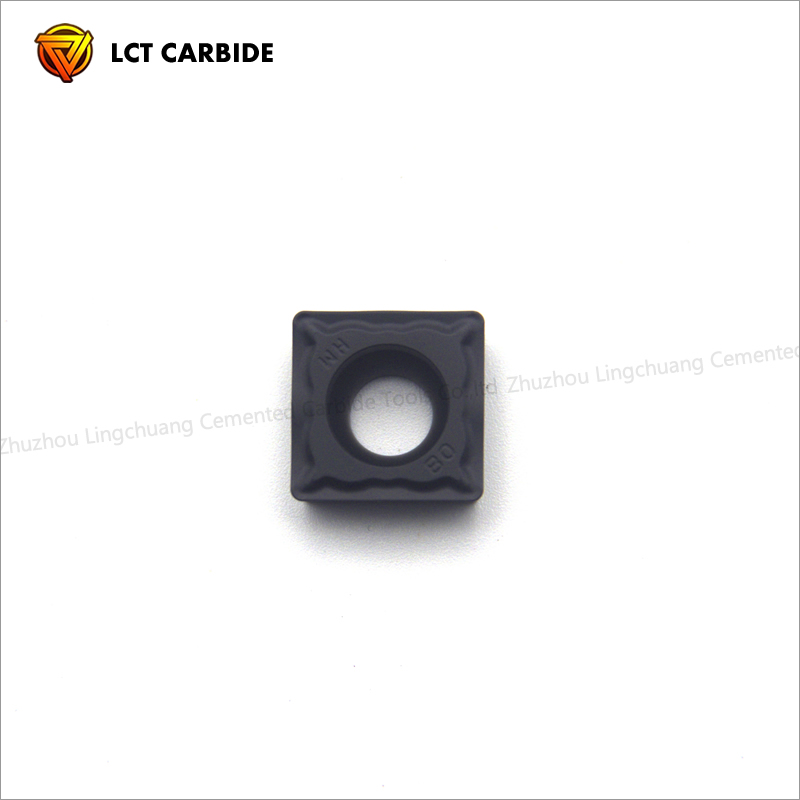

ISO Type: SCMT120408-DTM,SCMT432-DTM

Dimension (inch): L=0.500, I.C.=0.500, S=0.187, d=0.219, r=0.031

Workpiece Material (ISO): Steels (P10-P30)

Application: This insert is suitable for general-purpose medium machining of steels.

Chip Breaker: DTM

Chipbreaker for semi-finishing with wide application.M-class tolerance; suitable for boring and o.d. semi-finishing materials, like steel and cast iron etc.

Grade: DH1055

Grade Description: Thick TiCN + thick Al2O3 coating on carbide, a grade of Black Diamond Series For Steel Machining (color: black)

Comprising of thick TiCN and thick Al2O3 coatings, the grade has high capability against plastic deformation and good hardness of cutting edge. It is preferred grade for machining of steel from finishing to roughing. Under the same cutting conditions, the cutting speed can be increased by more than 25%, while the tool life can be 30% longer under the same cutting speed.

Note: Product sold in packs of 10 units.
