Solid Carbide Endmill

  • 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC
  • 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC
  • 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC
  • 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC
4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC 4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC

4 Flutes Solid Carbide Endmill/Corner Radius/Round Nose AlTIN Coating /50-55HRC

  • Product description: Solid Carbide Cutting Tool Milling Cutter Manufacturer Tools CNC End Mill, US $ 2 - 2.11, Zhuzhou, China, ,OEM, End Mill, Milling Cutter. Source from Zhuzhou Lingchuang Cemented Carbide Tool Co., Ltd
  • INQUIRY

Zhuzhou Lingchuang Cemented Carbide Tools Co.,Ltd (here in after reffered as LCT) is a Chinese company which established in 2008 located in Zhuzhou City,Hunan province,China where is famouse in the world for its tungsten carbide industry. lCT is a professional manufacturer of Cutting Tools and Carbide material. it has specialized in the Design and Manufacture of High-Quality Cutting Tools & Carbide material. Having more than thousands different kinds of items and huge stocks. Sieeso has a key product line for tools and material with advanced equipment and instruments.



50% of our products provide as OEM project for world-class cutting companies and 50% to do as our own brand. Our products have been sold to all-around the world, Such as Russian, Turkey, Europe, USA, Mexico, Vietnam, Thailand, India, Malaysia, and so on.


  Products Description

l  Hardness:   HRA 91.8-92.5

l  Work piece:  HRC45-50   HRC55-60   HRC65   HRC68

l  Helix angle:  30°-45 °

l  Diameter of cutting edge:   0.2-0.9 mm; 1-20 mm

l  Diameter of rods:   4-20 mm

l  Length:   50-100 mm

l  Cutting Form:   Flat, Square, Ball nose, Corner Radius, Taper Flute, etc

l  Flutes No: 1-8

l  Customized Available


Specifical of our carbide endmills:


LCT ITEMS

Straight End   Milling Cutter – 4 Flutes

Diameter 直径

Total Length 总长度

Rod Diameter 杆径

Cut Length 切割长度

Price 价格 USD/pcs

45HRC

55HRC

65HRC

D1*D4*50L-4F

1mm

50mm

4mm

3




D2*D4*50L-4F

2mm

50mm

4mm

6




D3*D4*50L-4F

3mm

50mm

4mm

7.5




D4*D4*50L-4F

4mm

50mm

4mm

10




D5*D5*50L-4F

5mm

50mm

5mm

13




D6*D6*50L-4F

6mm

50mm

6mm

15




D8*D8*60L-4F

8mm

60mm

8mm

20




D10*D10*75L-4F

10mm

75mm

10mm

25




D12*D12*75L-4F

12mm

75mm

12mm

30




D16*D16*100L-4F

16mm

100mm

16mm

45




D20*D20*100L-4F

20mm

100mm

20mm

45




D2*D4*75L-4F

2mm

75mm

4mm

6




D3*D3*75L-4F

3mm

75mm

3mm

9




D4*D4*100L-4F

4mm

100mm

4mm

20




D5*D5*100L-4F

5mm

100mm

5mm

25




D6*D6*100L-4F

6mm

100mm

6mm

30




D8*D8*100L-4F

8mm

100mm

8mm

35




D10*D10*100L-4F

10mm

100mm

10mm

40




D12*D12*100L-4F

12mm

100mm

12mm

45




D16*D16*150L-4F

16mm

150mm

16mm

65




D20*D20*150L-4F

20mm

150mm

20mm

70




Super Raw Material

Item

HRC50

HRC55

HRC60

HRC65

Grade

YG10X

YL10.2 & WF25

Germany K44 &K40

Sandvik H10F

Details

Grain size 0.7um, Co10%,

 Flexural strength

3320N/mm2

Grain size 0.6um,

 Co10%,  Flexural

strength 4000N/mm2

Grain size 0.5um, Co12%,

Flexural strength

4300N/mm2

Grain size 0.5um,

Co10%,  Flexural

strength 4300N/mm2



Super Coating

Coating Classifying and Advantage

Item

Coating Type

AlTiN

TiAlN

TiSiN

NaNo

Characteristic

Hardness(HV)

3300

2800

4300

42(GPA)

Thickness(UM)

2.5-3

2.5-3

3

3

Oxidation Temp.(°C)

900

800

1000

1200

Friction

Coefficient

0.35

0.3

0.25

0.4

Color

Black

Dark Purple

Copper

Blue

Advantages

High heat stability

Normally

cutting

Suitable for heavy

cutting, and high

hardness cutting

For high precision

 Cutting

Suitable for high

speed,

dry cutting

Suitable for cutting

mould steel, stainless

steel

Suitable for high

hardness

 cutting, mould steel

 processing

Most suitable for

 carbide cutting tools,

turning insert




Our advantage:

1.Provide a high feed speed and improve the process efficiency.

2.Suitable for high hardness steel and can keep a long service life.

3. Material Solid carbide and whole forging processing make the turning tool with long service life, better wear-resistance, strength and rigidity, high working efficiency.

4. Unique surface treatment with good antiseptic property.

5. High seismic resistance performance, which can improve the surface finish degree of the workpiece.

6. Competitive price and fast delivery will save the time and cost.

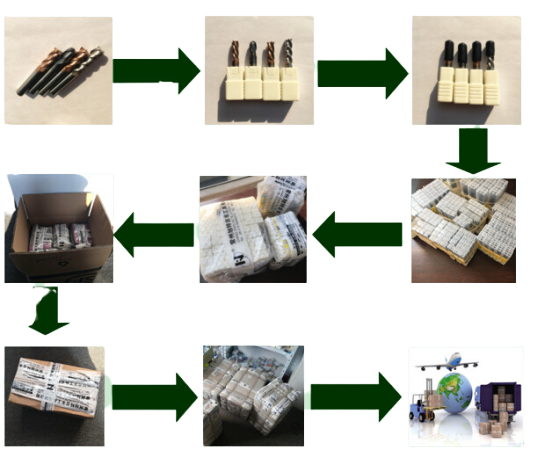

 Our Package

package and delivery.png

Shipping



Payment


Our Service

Pre-sale Service:

We have professional sales staff and application engineer; they can do the drawing confirmation and previous communication about the production and design of the tools based on your special requirements.

Sales Service:

Our professional sales staff will communicate and make reasonable production schedules based on your order requirements and delivery time. Meanwhile, sales staff can also know the status of orders anytime and communicate with you timely.

After-sale Service:

Our professional sales staff will make return visits regularly, to know all the situation you have encountered during the application of the ordered products and then feedback to company. At the same time, we will arrange the returning and changing of the products timely if they have possible quality problems.

Technical Support:

We have a number of veteran tooling design engineers, who can offer reasonable suggestions on the working procedure of your products, help you to improve the production efficiency. More importantly, we can design the products according to your requirements.
